Throttle Position Sensor
Destruction!
(i had to replace mine so i thought i'd take the old one to bits!)![](images/d796env/tps_07.jpg)
Ready?
![](images/d796env/tps_06.jpg)
![](images/d796env/tps_05.jpg)
Ok, that's the back plate off, next we see a rubber backing.
![](images/d796env/tps_04.jpg)
Once we remove that we see the back of the track plate.
![](images/d796env/tps_03.jpg)
Track plate is made from ceramic with carbon tracks.

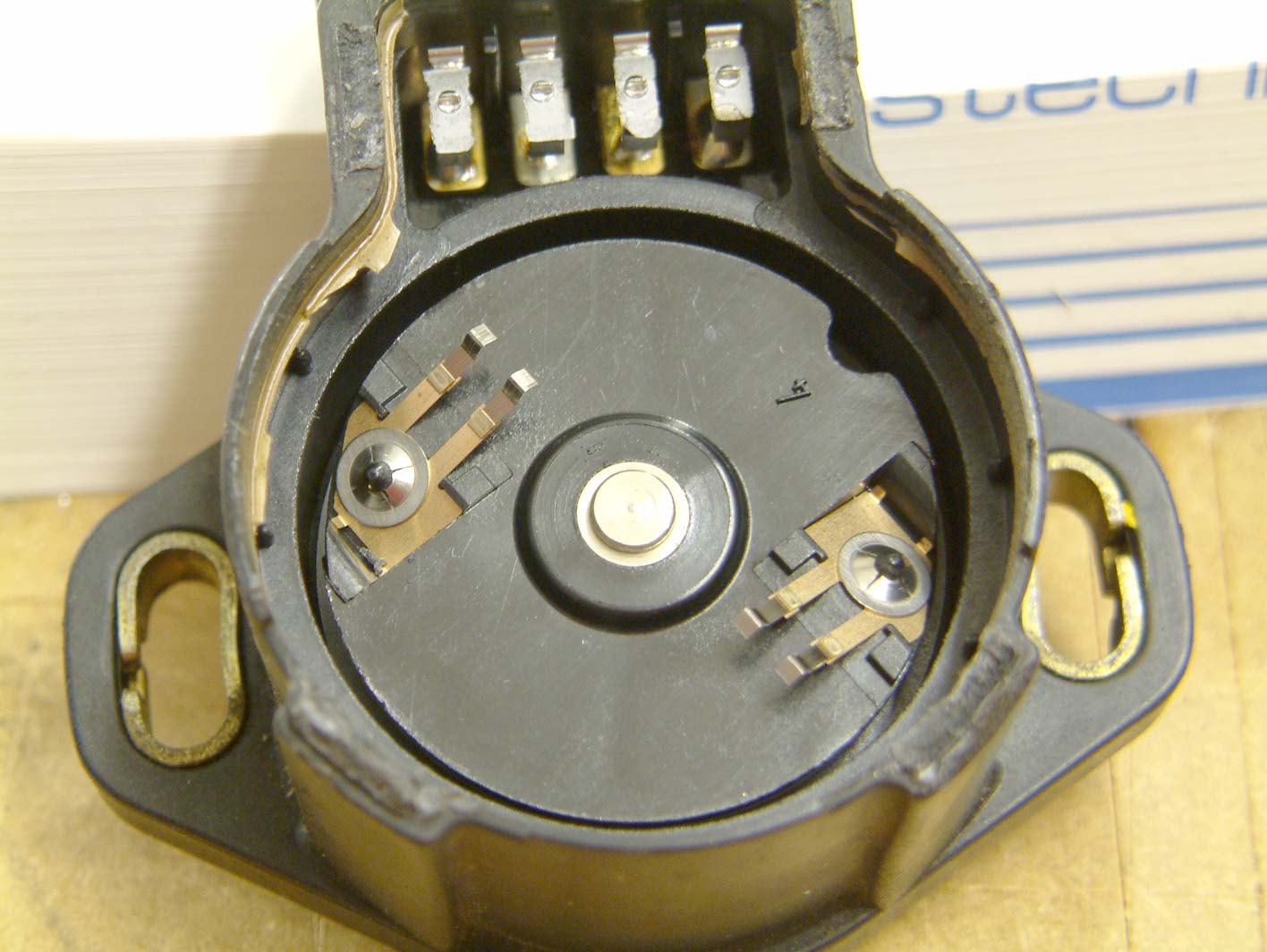

![](images/d796env/tps_01a.jpg)
The fingers are actually made from many fine stainless steel / copper wires.
(click image for high rez version)
![](images/d796env/tps_02a.jpg)

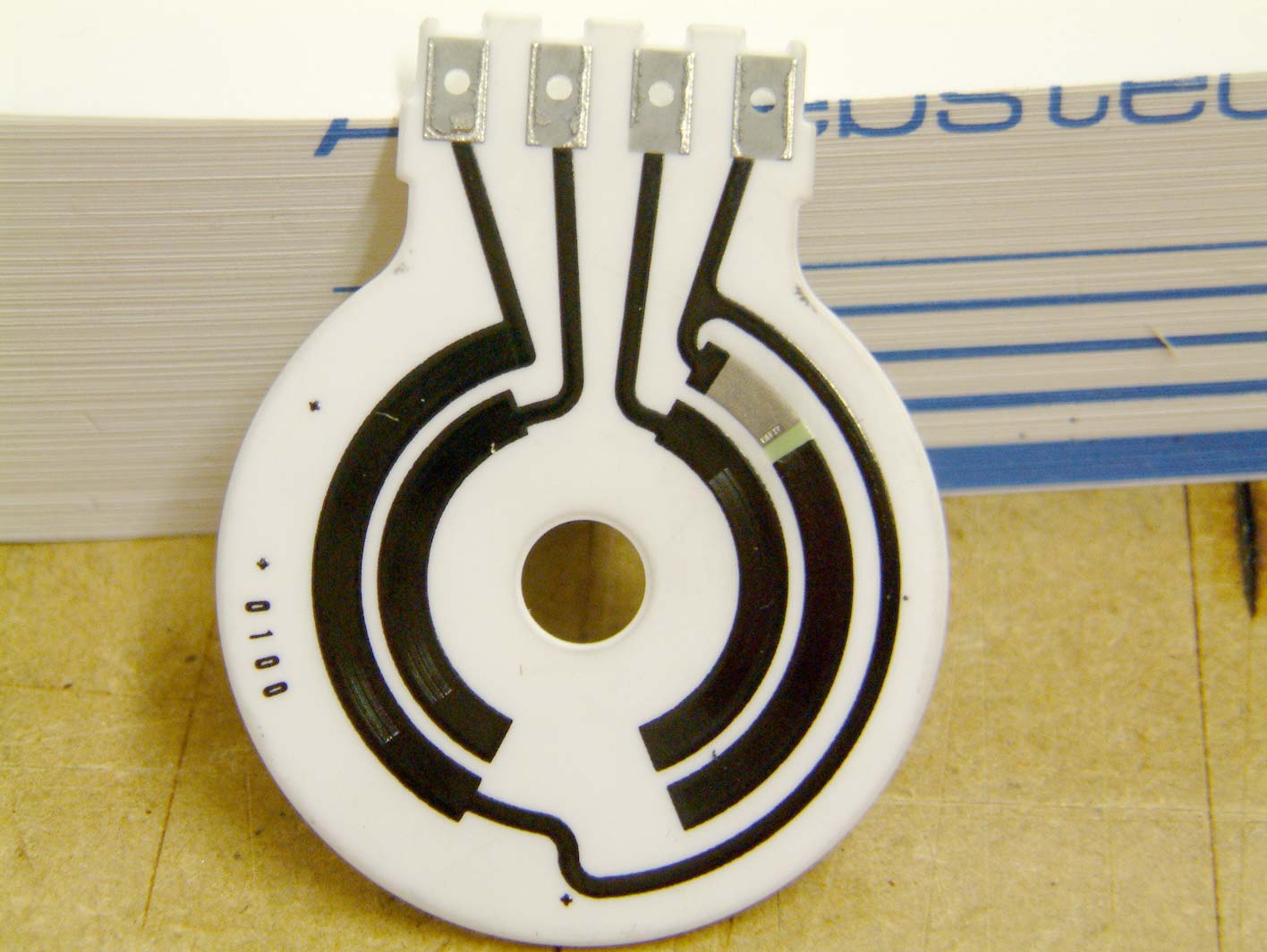

Ceramic track plate with tracks, there is some visible wear on the tracks...
but nothing obvious to show for the poor readings i got when testing it.
(click image for high rez version)
|
