Toyota MR2 Supercharger

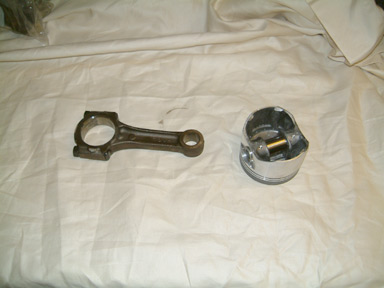

The piston and rod, as they came back from CMA, to attach the piston to the rod i need to remove the pin, to do this you heat the piston.

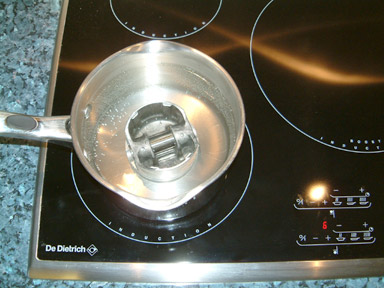

Thanks to an understanding mother, i warmed some water on the hob.

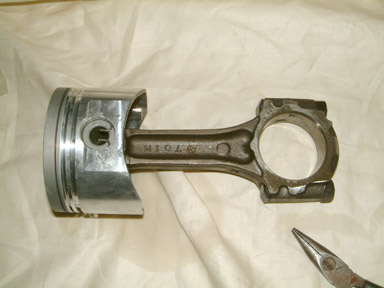

OK, the rod is now attached, next job is the piston rings.

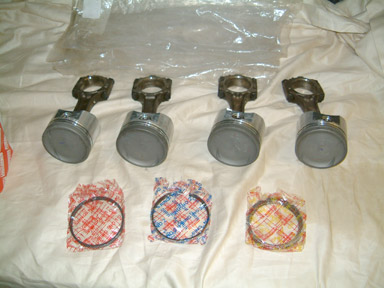

Rings ready to be installed.

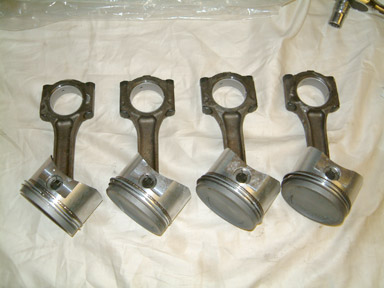

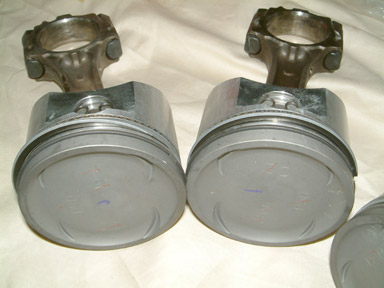

After some fiddling with ring pliers the new rings are installed.

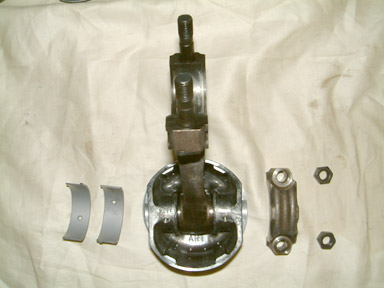

Next job, install the main (big-end) bearings.

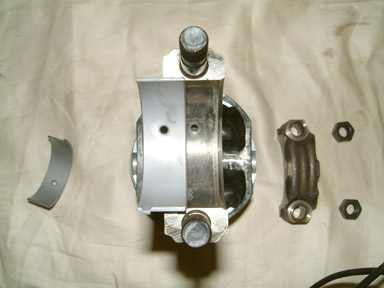

New bearing being installed.

Job done.
